DimBo – Dimensioning of Boilers
The program DimBo is designed for the simulation of steam generators in steady-state operation.
Description
DimBo is capable of handling complex systems of components for heat exchange and medium conversion.
The steam generator is represented by a mathematical model, a so called flow schematic. For all components usual in steam generator design the corresponding circuit elements are defined and can be adapted to the desired functions by parameters.
Currently the following types of media have been realised:
- Fuels (solid, liquid and gaseous).
- Gases (with dust burden).
- Water/steam.
- Dust/slag.
- Additives.
- Condensate from flue gas.
- Various heat transfer fluids with user defined fluid properties.
In detail the program can be used to determine the following parameters:
- Medium flows (mass flow rates and analyses).
- Temperatures and specific enthalpies.
- Heating surfaces.
- Heat transfer.
- Process parameters.
- Mass and energy balances.
DimBo is available both as a standalone executable application (EXE) and as a dynamic link library (DLL) for integration into third-party environments, including Microsoft Excel.
One notable application of the DLL version is Digital Twin, which uses DimBo to perform process simulations for boilers and chemical plants.
Realisation

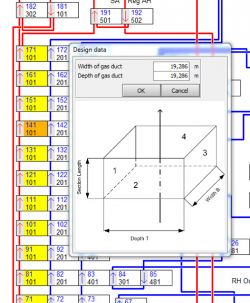

DimBo consists of two parts, a dialogue part to enter and modify the input data and a calculation part. The input data are stored in an input file in ASCII format.

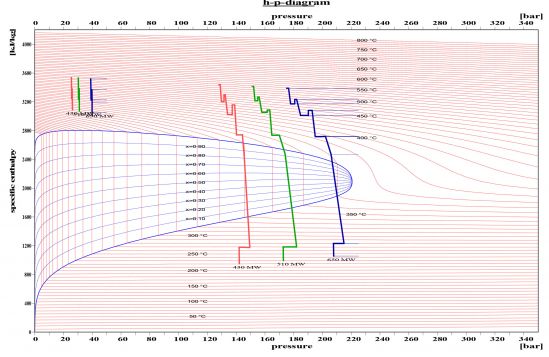

The results are stored as tables and diagrams, which can be displayed on the screen or printed out. Type and scope of the result output can be determined by the user.
For input and conversion of fuel and gas analyses, components of the program COMCAL are used.
For non-steady-state simulations the program DynaBO which is based on DimBo may be used.
System requirements: PC with Windows (32/64 bit) operating system.
Documents available
- User's manual
- Collection of examples for program application
The documents can be obtained from the responsible person.
Changes in DimBo program
- 2026-08-04
Release of DimBo version no. 35- The combustion products Fe2O3 and Fe3O4 are distinguished when firing Fe (as a component of the extended ultimate analysis). They differ from each other regarding oxygen demand, formation enthalpy and heat capacity.
The spread between Fe2O3 and Fe3O4 follows a newly implemented reactivity coefficient for the reaction Fe -> Fe3O4. Default value is =0, e.g. default product is Fe2O3.
If no reactivity coefficient > 0 is explicitly specified, only Fe2O3 will be produced. - Modification of the specific heat capacity of Fe2O3 as a solid product from the combustion of Fe. Fe2O3 is generated if one of the fuels taking part in the combustion contains Fe as a combustible component.
The modification comes into effect as soon as 35 or nothing is input as number of the DimBo version.
Notes:
- The new values for the specific heat capacity are lower than before; the combustion temperature therefore becomes higher (with no change in other parameters).
- Fe2O3 occurs in the combustion calculation also as inert ash component. In this case the default value for the specific capacity of ash and not an individual value for the particular ash component is used.
- The new values for the specific heat capacity are lower than before; the combustion temperature therefore becomes higher (with no change in other parameters).
- Comments with multiple lines for up to 20 circuit elements can be defined and processed within the DimBo GUI (Graphical User's Interface).
- The menus for processing task descriptions and load dependent data (process parameters, pressures, initial media flows, temperatures) allow for the deletion of data set ranges and not only single data sets (one by one).
- The combustion products Fe2O3 and Fe3O4 are distinguished when firing Fe (as a component of the extended ultimate analysis). They differ from each other regarding oxygen demand, formation enthalpy and heat capacity.
- 2026-03-11
Release of DimBo version 34- The output figure for the coefficient for radiative heat transfer between flue gas and heating surfaces in the "HEAT TRANSFER" table is from now on always related to real heating surface (same reference surface as for convective heat transfer coefficient and k-value). If this coefficient is in the calculation utilized for the (smaller) projected surface, the figure is marked with the suffix "p".
In former DimBo versions the reference surface area was type number dependent without marking in the output.
- Additional furnace parameters when using the sectional furnace model:
- Absorption coefficient of the heating surfaces in the furnace for radiative heat transfer between flue gas and heating surfaces.
- Heat transition coefficient for the heat exchange between rising flue gas and downward falling ash particles (slag).
- Heat transition coefficient for the heat exchange between rising flue gas and recirculated flue gas.
- Absorption coefficient of the heating surfaces in the furnace for radiative heat transfer between flue gas and heating surfaces.
- The following changes come into effect if number 34 is input as version no. of the DimBo calculation procedure:
- Reduced heat transfer for combined gas and dust radiation at heating surfaces with type nos. 401 and 404 in case of small tube distances. In case that the projected surface area becomes smaller than the real surface area (that is the case if the relative pitch p/d becomes smaller than pi/2 ~1.508...), the projected area will be considered for radiative heat transfer, while with version numbers <34 always the real surface area was considered, and the heat absorption was probably overestimated.
In such cases, the mean beam length for radiative heat transfer at heating surfaces of the corresponding section will also be calculated using the projected instead of the real surface. The mean beam length and all radiative heat transfer coefficients will then become larger. This will partially compensate for the reducing impact on heat transfer for type nos. 401 and 404 and slighly increase the radiative heat transfer on heating surfaces with all other applicable type numbers.
- If multiple heating surfaces with type no. 404 are present in the same gas duct section and no platen depth is specified, the proportional gas depth (according to the number of tubes) will be used as default value for the platen depth, as if the platens are arranged next to each other in the direction of the gas duct depth.
For version nos. <34 the total gas duct depth was used for each platen, as if the platens are arranged next to each other in the direction of the gas duct width.
The change is meaningful with respect to the beforementioned reference of the radiative heat transfer coefficient to the projected surface area.
In case of doubt, the platen depth shall be explicitly specified instead of using default values.
- The bottom ash outlet temperature is a calculated figure when using the sectional furnace model. With version numbers from 34 and above for the DimBo calculation procedure this temperature will also be used as outlet temperature for the circuit element with type no. 602 of the associated combustion section.
For version nos. <34 the user's input figure for the slag temperature was used instead for type no. 602 and an error in the overall energy balance could occur. In case of an imbalance, a corresponding note recommending to use version no. 34 will appear below the output table with the mass and energy balance of the corresponding combustion section.
If the input figure shall be used instead of the calculated value, the beforementioned heat transition coefficient for the heat transfer between flue gas and slag can be declared as variation parameter to be adjusted in order to meet the desired slag temperature.
- New default values for the heat transition coefficients in the sectional furnace model are used with DimBo version 34:
- 80 W/(m2.K) for the heat exchange between rising flue gas and downward falling ash particles (slag) - instead of 250 W/(m2.K) for DimBo version <34.
- 125 W/(m2.K) for the heat exchange between rising flue gas and recirculated flue gas - instead of 250 W/(m2.K) for DimBo version <34.
- 80 W/(m2.K) for the heat exchange between rising flue gas and downward falling ash particles (slag) - instead of 250 W/(m2.K) for DimBo version <34.
- Gas side pressure drop on the outer side of a tube bundle considers the number of tube layers of preceding tube bundles with same geometry.
Note: Especially for the pressure drop of the first tube layer, the resistance coefficient is substantially higher than for the following layers. If in a DimBo model a heating surface with multiple layers is divided into a sequence of heating surfaces, each with one layer, the total pressure drop with version nos. <34 is erroneously too high.
- Direction of solving the differential equation for heat exchange in the sections of the sectional furnace model is from version 34 and above always identical to the direction of flue gas flow. This has a stabilizing impact on the iterative calculation of the medium temperatures.
- Reduced heat transfer for combined gas and dust radiation at heating surfaces with type nos. 401 and 404 in case of small tube distances. In case that the projected surface area becomes smaller than the real surface area (that is the case if the relative pitch p/d becomes smaller than pi/2 ~1.508...), the projected area will be considered for radiative heat transfer, while with version numbers <34 always the real surface area was considered, and the heat absorption was probably overestimated.
- The output figure for the coefficient for radiative heat transfer between flue gas and heating surfaces in the "HEAT TRANSFER" table is from now on always related to real heating surface (same reference surface as for convective heat transfer coefficient and k-value). If this coefficient is in the calculation utilized for the (smaller) projected surface, the figure is marked with the suffix "p".
- 2025-08-15
Extended comments in DimBo input files:- Code word with up to 40 Characters
- Additional comments to each calculation (up to 20 lines per calculation)
- Additional comments to each revision (up to 20 lines per revision)
- 2025-07-29
The following changes have been implemented:- Maximum number of calculations and maximum number of load-dependent data have been increased from 48 to 96.
- Data check of post-oxidation paths has been corrected.
- 2025-01-21
Therminol 72 and Fragoltherm 680 with their material properties are implemented as additional heat transfer fluids and can be referred to as user defined medium type. - 2024-12-17
The inert ash composition of dust loaded gases with medium type 1 is calculated from the corresponding fuel data. Moreover, the characteristic parameters for the tendency to fouling and slagging are determined.The values appear in the tabular output if the "extended" output of balances is requested.
- 2024-10-28
Without affecting the combustion calculation, up to 4 characteristic temperatures can be specified to describe the ash fusion behaviour of a fuel under a reducing or oxidising atmosphere. For details refer to ComCal user's manual, section 3.4.1.7 "Additional fuel parameters". - 2024-09-26
The fuel analysis input form offers the option of specifying the inert ash composition of a fuel:- The mass fractions of up to eleven major components (SiO2, Al2O3, etc.) of the ash can be specified.
- The ash composition is used to evaluate the tendency to fouling or slagging of the fuel by determining indices commonly used in the literature for coal and biomass fuels.
- 2024-09-25
The resulting heat absorption, heat flux, medium temperature and wall temperature for each layer of a tube bundle can be called from the data interface (e.g. from Excel). - 2024-08-23
The material database is updated and new materials have been added, among others:- The DIN material 1.5415 was erroneously named as 16Mo3, this was corrected to 15Mo3.
- The EN material 1.5415 (16Mo3) is newly added to the database.
- The materials 1.4558, 1.4828, 1.4907, 1.4948, 1.5415 and 1.7380, which were previously only included as DIN materials, are now also available as EN materials.
Additional information is added to the material selection dialog which make it easier to select a suitable material.
- 2024-03-06
The following circuit element types were newly implemented:- 146 Gas duct with catalyst basket
- 643 Grinding/drying - External fluid as heat source
- 2024-02-15
For the gas side pressure loss of tube bundles with transversal flow, tube rows with identical geometry in preceding sections are considered, if version number 34 is set for the DimBo calculation procedure.Background:
The implemented correlation for the pressure loss calculation contains a correction for the number of tube rows one after another in the direction of gas flow. Accordingly the pressure loss for the first row is substantially higher than for the following rows. If, however, the heating surface bundle is spread over several DimBo sections - in an extreme case each tube row forms an individual section - the correction was performed again and again for each first tube row of a section. From now on, if the (not yet released) DimBo version no. 34 is inserted, the correction is only performed for the real first tube row.
- 2024-02-01
The following circuit element type is newly implemented for test purposes:- 371 Gas duct with catalyst basket
- 2023-03-27
The lower calorific values of the fuel components NH3 (ammonia) and CS2 (carbon disulphide) were corrected. The previous values could neither be substantiated by literature nor derived from the formation energy of the involved gas components.
The change comes into effect if a version number > 32 for the DimBo calculation procedure is input.
Up to version number 32 the old, erroneous values are further in use to make previous DimBo results reproducible. A warnung appears then if one of the fuels contains either NH3 or CS2. - 2023-02-22
An error at the air ration calculation for a sub-stoichiometric combustion is eliminated.
For sub-stoichiometric combustions, where not sufficient oxygen (respectively air) is available to convert all carbon into CO2 and all hydrogen into H2O, the combustion calculation in DimBo forms primarily CO (instead of CO2) and secondarily H2 (instead of H2O) as the final products of the incomplete combustion. The air ratio, defined as the relation between available air and air demand, then becomes <1 (details can be obtained from the ComCal user's manual, section 3.4.7 "Combustion calculation with oxygen deficiency").
The correlation which DimBo uses to convert the CO and H2 contents of a flue gas composition into a corresponding air index contained an erroneous factor for the H2 conversion with the consequence that too low air ratios were calculated for given air flows respectively too high air flows for given air ratios. The error could only occur in the rare cases where the available air was such low that not even the hydrogen could be converted into H2O and H2 was formed as component in the flue gas composition. - 2023-02-16
The select fuction for the MSTAT number selection in input forms for load dependent data is improved. Now it is possible to select multiple inlets or outlets of the same circuit element with the consequence that the corresponding MSTA number supplemented by part flow number "0" for the total flow will be transferred to the corresponding MSTAT input box. - 2023-01-03
Release of DimBo version 33The following changes come into effect if number 33 is entered as version no. of the calculation method:
- Modification of tube wall temperatures for membrane walls (tube-fin-tune):
- Fluid film temperatur inside the tube
Correction of the heat flux density on the tube inner side. Until version no. 32 to large figures were used with the consequence that calculated fluid film temperatures on the tube inner side were to high. - Fouling on the tube inner side of membrane walls
The fouling coefficient on the tube inner side causes an increase of the inner tube wall temperature and all consequential temperatures. This effect is now considered in contrast to calculations with version numbers <33. - Material temperatures of the membrane tube wall
Individual temperatures for inlet and outlet instead of one average temperature are now calculated.
The impact of the changes described above is limited to the result output of tube wall temperatures in tables and with the data interface (e.g. for Excel). All other results remain identical. - Fluid film temperatur inside the tube
- The fluid temperature inside the tube is no longer the lower limit for the tube wall temperature. In case of tubular heat exchangers with gaseous fluids on both sides of the tube wall, tube wall temperatures lower than the inner medium temperature will be calculated, if the tube is cooled from the outer side.
- Adjustment of recirculation flow rates for internal dust separators in circulating fluidised bed furnaces with variation of the cross-sectional area.
- Modification of tube wall temperatures for membrane walls (tube-fin-tune):
- 2023-01-03
The correlation for the temperature dependent calculation of the dynamic viscosity as fluid property of HitecXL salt was corrected. The old correlation provided unrealistic high figures for the viscosity with rising temperatures. - 2022-12-22
The portion of unburnt combustibles in the fly ash from a previous combustion to be burned at the present combustion can be used as variation parameter for medium flow and temperature conditions.This option is useful if a staged combustion is realised with a series of combustion sections.
- 2022-12-09
YaraMOST salt with its material properties is implemented as additional heat transfer fluid and can be referrred to as user defined medium type. - 2022-10-06
At the heating surface evaluations as part of the process paramters up to 54 MSTA numbers per evaluation group can be defined. The old limit was 18 MSTA numbers. - 2022-09-16
The error level for missing heating surface evaluations for unheated connection pipes (type number 481) is reduced from 1 = "Warning" to 0 = "Hint". Due to this modification the typical DimBo application in MS Excel will not indicate such input data as erroneous and the corresponding calculation will thus be performed. - 2022-02-01
DimBo is available as 64 bit version. Although the processor internal floating point arithmetic is different for 64 bit compared to 32 bit, the results of the iterative calculation are equivalent. The size of the 64 bit executable is 35% larger but the calculation time is up to 70% shorter. - 2021-12-23
Oxidation path for the conversion of NO with O2 to NO2 for process gases can be defined as new items of the DimBo process parameters.These oxidation paths will be used to perform calculation of the mentioned chemical reaction, which is dependent on the temperature, pressure and initial composition of the process gas and on the geometry of the circuit element. As a result the composition of the process gas changes when passing the elements of the oxidation path and oxidation energy will be released to the process gas in form of thermal energy.
For details refer to the DimBo user's manual.
- 2021-12-08
In the calculation of the CFB furnace implausible values for the recirculated dust flow rates were determined if the coss-section of the flue gas duct changes. The calculation of the recirculated dust flow rates was corrected. - 2021-10-29
A mistake inside the calculation of the feeding rate of an air heater (AH) is corrected. Prior to this correction and in case of a hot air recirculation an erroneous feeding rate > 100% could be determined.The calculation is now modified in such a way that air flows are no longer considered to contribute to the AH feeding once they have passed the AH.
- 2021-10-18
The composition of a process gas is now available via the DimBo data interface of the DimBo.dll (dynamic link library) version of DimBo. - 2021-06-17
If an intended dust separation is realised with one or multiple cyclones and the circuit element with type number 506 is utilised for this purpose, the geometry can be derived from the gas volume flow. This can be demanded by a corresponding option at the baghouse/ESP parameters as part of the process parameters. - 2021-06-02
Simplified input for the variation parameters for medium flow and temperature conditions in case that a mixing/branching ratio shall be used as variation parameter:The number of the mixing/branching ratio and the part flow number form now two separate input items.
Previously the part flow number multiplied by 100 had to be added to the number of the mixing/branching ratio.
- 2021-05-05
For the determination of parameters for the material design (maximum material temperature, heat flux) the conversion of the heat transfer to a locally clean outer surface can now be suppressed.This conversion acts for a heating surface with an evaluation factor < 1.0 or an outside fouling value > 0.0 in such a way that the heat transition becomes larger, corresponding to the figure of a clean surface. Then the resulting heat flux and the material temperature become also larger.
The conversion remains the default calculation option. If however, the fouling and/or other reasons for reduced heat transfer apply uniformly for the entire heating surface, the conversion can be suppressed with selection of a corresponding option at the DimBo model parameters for the material utilisation.
- 2021-02-03
Improved correlations for the specific heat capacity and the thermal conductivity are implemented for mixtures of glycol and water as user-defined medium type. - 2020-12-12
Release of DimBo version 32Also membrane walls with type nos. 241, 402 and 441 for the circular or annular gas duct may be equipped with studs and refractory lining. The related heat resistance will form part of the total heat transition coefficient.
In the result table titled "Heat transition for surfaces with studs and refractory lining" the value designated as "Heat transition coeff. unlined" is determined more precisely and fits better to a corresponding calculation, where studs and refractory lining are actually removed from the model.
The following changes come into effect if number 32 is entered as version no. of the calculation method:
- For membrane walls with type nos. 201, 402 and 403 in the rectangular gas duct the coefficient for the outside heat transfer is calculated individually for tube and fin and then combined to a total heat transition coefficient. Until version 31 an average coefficient for the outside heat transfer was considered. The observed deviations for the heat transmission are in the magnitude of 1% as long as the tube pitch is not larger than 1.5 times the tube outer diameter.
- For membrane walls with type nos. 241, 402 und 441 in the circular or annular gas duct a mistake in the calculation of the heat transition coefficient as the result of various individual heat resistances is eliminated. The observed deviations for the heat transmission are in the magnitude of 5% as long as the tube pitch is not larger than 1.5 times the tube outer diameter.
If a calculation is performed with version no. < 32 for the calculation method, the deviation in heat transition coefficients (k value) between selected version and standard version is determined for each membrane wall. Deviations exceeding 3% result in a corresponding note as part of the diagnostic info for the calculation.
- 2020-11-22
Mixtures of glycol and water can be used as user-defined medium type.A mistake at the pressure drop calculation for user-defined media is eliminated. Previously a wrong medium density was used for the calculation.
- 2020-09-15
The physical unit mg/m3 STP, dry, at Reference O2 may from now on be used for media flow conditions when specifying either the fraction of a gaseous component of a gas mixture (e.g. SO2) or the dust loading of a gas. Previously this was only applicable for emission values, e.g. CO, NOx. - 2020-06-15
For the calculation of cyclone efficiency from cyclone geometry, the impact of the Reynolds number is now considered for the calculation of the friction coefficient lamda0. This may result in slight differences in the results. Furthermore an error was eliminated, which, for extremely small particle diameters, resulted in negative efficiencies so that the DimBo calculation aborted.The changes come into effect for version no. 31 and higher.
- 2020-04-04
Particle packings can be defined as user-defined medium type with additional input parameters for the particles (diameter, porosity, absorption coefficient for radiation, surface roughness) and the carrier gas (no. of gas analysis).A calculation procedure for the heat transfer to particle packings in tubes is newly implemented.
The result output section "Balances" is extended by output of the parameters and temperature and pressure dependent properties of all used user defined medium types.
- 2020-02-11
Change in diagnostic information in result table output:The 8 characters long user-defined description belonging to the evaluation factor followed by the shortened designation of the first MSTA number of the evaluation group is used as the corresponding comment, if a evaluation factor is used as variation parameter for a temperature condition.
Until now only the (full) designation of the first MSTA number of the evaluation group was used.
- 2020-02-07
New software protection against unauthorised application.Adjusted control of input menu items and calculation scope with respect to license options.
- 2019-09-27
Release of DimBo version 31Changes related to version no. 31 for the calculation method:
- Pressure loss for bare tube bundles with transversal flow:
- Version >= 31: FDBR-Handbuch W rme- und Str mungstechnik, Section 9.6.1, June 2010. For large relative longitudinal and transversal pitches a suitable extrapolation method is applied for the influence of these parameters.
- Version <= 30: FDBR-Handbuch W rme- und Str mungstechnik, Section 9.1.3.2, November 1998.
- For the calculation of the maximum heat flux for the material design at the tranformation to clean conditions the correction for a specified fouling value on the tube inner side is omitted.
- For the characteristic heat release figures
- Surface heat release
- Cross-sectional heat release
- Volumetric heat release
- Pressure loss for bare tube bundles with transversal flow:
- 2019-04-28
Evaluation factors for individual circuitry elements can be defined at the pressure combinations input data in order to adjust the calculated pressure losses due to friction for the corresponding elements. - 2019-03-19
An error related to the load dependent recalculation of k*A values for three sectional air heaters is eliminated. The impact of the air flow change was considered with an erroneous air side leakage flow a rate. - 2019-03-11
The final moisture content of a combined grinding and drying section can be used as variation parameter to fulfil a temperature condition. - 2018-12-17
New option for fuel analysis transition into 'daf' (dry and ash free) analysis (refer to ComCal changes). - 2018-12-17
The 'balance' result tables contain now for each furnace (type numbers 102, 113, 114) a results block with furnace geometry, characteristic heat loading parameters and parameters to determine heat transfer and furnace exit gas temperature (FEGT). - 2018-09-17
Changes for heat exchangers with specified k*A values (heat transition coefficients):- For each k*A value for the heat transition between two media flows an evaluation factor can be specified. This factor will then be multipied with the (theoretical) k*A value, which is either specified or determined by a load-dependent recalculation, and the product forms the effective k*A value.
- An air heater circuitry section with type nos. 501 and 502 can now use up to two circuit elements with type no. 502. This allows a better modelling of three sectional air heaters with flue gas, primary air and secondary air as media. Until now only one element with type no. 502 has been possible.
- 2018-07-27
The properties of Molten Salt "HitecXL" with 48% Ca(NO3)2, 7% NaNO3, 45% KNO3 are provided and can be assigned to an user defined media type. - 2018-02-12
The extrapolation method for the furnace exit temperature calculation via Q/A functions is modified. Now a smooth transition between parameters inside and outside of the intended parameter range is achieved and function characteristics for extreme parameters are more reasonable.The extrapolation comes into effect in the following cases:
- Extreme high or extreme low adiabatic flue gas enthalpies.
- Extreme high or extreme low heat input related to the furnace surface area.
- 2018-01-09
Error at temperature condition for media with user-defined material properties. Instead of the specific enthalpy the temperature was used as target value. Thus the iteration was directed to the wrong target value. The error was eliminated. - 2016-11-06
New option for fuel analysis data input (refer to ComCal changes).
Updated material data base for pipe and tube materials. - 2016-09-30
Due to an unit conversion error in the water-/steam side 2-phase flow pressure loss calulation, the steam content at dry-out point was determined to high (factor 1.33). As the local pressure drop decreases significantly after dry-out, the calculated pressure drop in the evaporator section might be too high. This affects especially the evaporator helix of Once-Through Boilers in part load operation. The error was fixed in version 30.05. The changes will be applied independent of the selected version number of the DimBo calculation procedure. - 2016-09-30
If the number of design data groups was higher than 100, an error occured during data transfer from the graphical interface. This error resulted in a complete loss of geometrical data. The error was fixed in version 30.04. - 2016-04-06
An error in the adjustment of the "Initial media flows" for the fluidised bed furnace model resulted in an access violation and thus in an abort of the calculation. - 2016-02-09
Release of DimBo version 30
Changes related to version no. 30 for the calculation method:
- For the determination of material temperatures Dimbo calculates maximum heat flux densities for single rows of tube bundles. However the calculation method for the determination of these heat flux densities is based on pure parallel- or counterflow. The more the arrangement of the heating surface deviates from this ideal case, the larger the error will be. Therefore in Version 30 a correction of the heat flux densities is implemented for the special case, that a bundle heating surface consists only of one tube row. The corrected heat flux densities and thus the detemined material temperatures will be higher at the tube inlet and lower at the tube outlet.
- In the recent program version an error in the calculation of the inlet cross-sectional area of an CFB reactor resulted in wrong results for the suspension density in the hopper.
If the inlet cross section is not quadratic, the elimination of the error results in significantly deviations of suspension density and heat transfer coefficients for the hopper region.
The values for inflection height and total bed mass of the CFB, which are displayed in the Dimbo diagnostic output can also deviate significantly. Nevertheless the effect of the program change on the overall heat absorption of the complete CFB reactor is small. - The calculation of the outer convective heat transfer for tube-fin tube cylinders (type 241 and 441) has been revised.
While the calculation for vertical approach flow (inclination of tubes 0 ) remains unchanged, the calculation of the characteristic hydraulic diameter for longitudinal approach flow (inclination of tubes 90 ) was corrected. As consequence the convective heat transfer coefficient will increase slightly, especially for large inclination angles. - The heat resistance of refractory on tube-fin-tube walls is now related to the projected surface instead of the tube-fin-tube surface. Compared to previous calculations this results in smaller heat transition coefficients.
Enhencements:
- For the CFB furnace model it is now possible to simulate a post-combustion in the cyclone. The fraction of heat release in cyclone can be defined within the process parameters of the circulation fluidised bed.
- Calculation procedure for heat transfer and pressure loss for circuit element 251 (annular gap around annular gas duct) has been implemented.
- An error in check of CFB circuitry, which resulted in a unjustified error message, was eliminated.
- 2016-01-13
Improvements for graphical input of circuitry and geometry:
- Properties of one circuit element can be transferred to another circuit element by copy/paste (Ctrl+C/Ctrl+V).
- Non initialised geometry parameters of one circuit element can be initialised with data from another element by a click on the corresponding circuit element during parameter input.
- 2016-01-03
The calculation procedure for the heat transition coefficient of Drum Preheater (type no. 513) and Drum Cooler (type no. 514) cercuit elements is corrected.The recent program version performed under certain circumstances an unjustified modification of the heat transission coefficient. This modification has been removed from the program code.
- 2015-10-18
For tube walls and platen type heating surfaces, lined with studding and refractory, two extra tables are provided with the tabular output:- Heat transfer
The influence of the lining heat resistance on the overall heat transition is described in detail by an extra table. - Design data
Geometrie of studs and refractory thickness as well as their materials are listed in an additional exra table.
- Heat transfer
- 2015-02-04
Release of DimBo version 29Enhencements:
- CFB furnace model
Additional facilities for the calculation of fluidized bed combustion were implemented (see DimBo User's manual) - New Element "Hood"
A new element with the type number 123 was implemented for modelling the hood of a circulating fluidized bed combustion. - Calculation of cyclone efficiency from geometry
For cyclones the calculation of efficiency and pressure drop was implemented according to Muschelknautz (VDI-heat atlas, 2006, Chapt.Lcd). - For radiational heat transfer in fluidized bed reactors the absorption coefficient of the wall can be specified deviating from the default value of 0.79 via the process parameters of fluidised bed heating surfaces. Different absorption coefficients can be specified for walls with and without refractory.
Changes:
- An erroneous calculation of max. gas velocities for gas ducts with 90 lateral bend (type no. 121 and 122), which contain sling tubes (type no. 401), has been corrected.
- An erroneous heat transfer calculation is corrected for unheated connectig pipes (type no. 481), which are assigned to a furnace section. No heat from the furnace will be absorbed. Instead, as for all other unheated connecting pipes, only participation in the thermal losses is considered.
- For the heat transfer by condensation of steam flowing inside cooled tubes the calculation method according to Boyko and Krujilin was implemented.
Modifications come into effect if number 29 is entered as version no. for the calculation method.
- CFB furnace model
- 2014-10-17
An erroneous calculation for the transferred heat of drum cooler or drum preheater elements was removed. The error could occur if drum cooler respectively preheater are described with geometric data and therefore the heat tranfer coefficient is calculated and if, at the same time, a change in the sphase condition of the medium within the tube occurs.At the wall temperature calculation for membrane walls an error is corrected. Temperatures for back side and fin base have been swapped. Therefore too low temperatures could be indicated.
For diagram output a smaller character font size is used if otherwise the text length exceeds the size of the corresponding text box.
Various modifications for easier handling of the graphical user interface for circuitry processing.
- 2013-01-17
The correction of an erroneous calculation of calorific values for gaseous fuels containing Chlorine and/or Fluorine within the sub-program COMCAL comes into effect if version no. 28 is used as calculation method for DimBo.
For details see change history of COMCAL. - 2012-09-26
Release of DimBo version 28 with following changes:
- Cross-sectional area calculation for bended gas ducts (Type nos. 121 and 122).
Modifications are required for bends with extraordinary ratios of width to depth or width to length in order to achive realistic velocities for the gas flow and the corresponding convective heat transfer.
Same applies for the maximum velocities (narrowest cross-section). However, the value has impact on the heat transfer only in case of fluidised bed heating surfaces. For conventional heating surfaces the maximum velocity is just a output value. - Maximum gas velocities for furnaces (Type nos. 113 and 114).
Furnaces with type nos. 113 or 114, variant 2, which include the hopper geometry, had indicated extreme high gas velocities, as misleadingly a flow of the whole flue gas through the hopper opening had been considered.
With the new version, the narrowing at the hopper is no longer taken into account while calculating the flue gas velocity.
The maximum flue gas velocity for a furnaces is a pure output value without any impact on other calculation figures.
Modifications come into effect if number 28 is entered as version no. for the calculation method.
- Cross-sectional area calculation for bended gas ducts (Type nos. 121 and 122).
- 2012-01-09
Parameters for heating surface evaluation (evaluation factors, fouling figures) can be taken over from a previous calculation to the present calculation.
- 2011-10-11
Release of DimBo version 27 with following changes:
- For calculation of material utilisation the corrosion allowance is considerd on the outer surface.
Compared with version nos. < 27 the required wall thicknesses are reduced, which results in lower material utilisation. - For the cross-sectional area calculation of gas ducts the reduction by membrane side walls is taken into account (half of the wall is inside the duct). For studded and refractory lined heating surfaces the cross-sectional area is further increased by the refractory layer.
Effect on gas ducts with membrane side walls (type no. 201) and/or studding and refractory lining:- Higher velocties
- Increased pressure losses
- Increased heat transfer coefficients for heating surfaces located within the duct.
- Coefficients for the statistical analysis of municipal waste are employed from FDBR-Handbuch W rme- und Str mungstechnik, release June 2010.
For version nos < 27, coefficients of the former release June 1996 are used.
- For calculation of material utilisation the corrosion allowance is considerd on the outer surface.
- 2011-10-11
For combustion of municipal waste and special fuels the encapsulation of fuel components Sulphur (S), Chlorine (Cl) and Fluorine (F) into ash can be taken into account.
To this, the individual degree of encapsulation can be specified as parameter for the corresponding combustion section within the process parameters.
- 2011-06-01
The allowable number of circuitry sections is increased from 50 to 75.
A new graphical user's interface for circuitry processing is released with improved functionality.
- 2011-02-23
DimBo is extended by a sectional model for furnace calculation.
The furnace can be divided into up to 2 hopper sections and up to 18 cuboid sections.
Fuel and air supply will be distributed over the individual sections by user input.
- 1981 - 2010
Various milestones in software improvement. Details can be obtained from Steinmüller Engineering GmbH. - 1981-06-01
Start of development for an autonomous thermodynamic software at L&C Steinmüller GmbH.
